Test Case Simulation
Using the Test Case Simulator
All endpoint calls to the POST /Create Sender and POST /Create Transfer endpoints pass through the test case simulator in our Sandbox environment. Each test case has a triggered condition that when used will cause the simulator to return a simulated response. If a call to an endpoint is made with no trigger invoked, the request will pass through to the API.
When running a test case through the simulator, when a trigger is used, compare the response received to the outcome code. The Sub-Test Case column shows the expected test case/error to be returned in the response.
Example

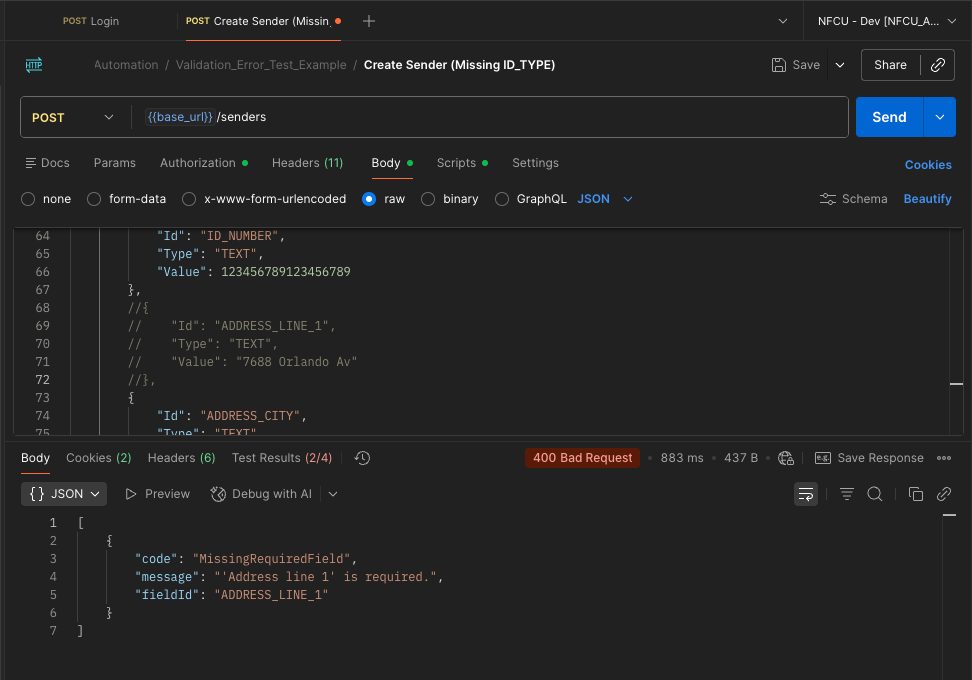

Here is an example of simulating the POST /Create Sender test case for Address Component Missing. Address_Line_1 is a required field for creating a sender. If we send a request with Address_Line_1 we will expect to see a missing required field error for the Address with a 400 - Bad Request response code.
Simulated Use Cases
The table below contain a list of all the available simulated test cases supported. Not every possible error is listed below. For example, missing any required field in a call to the endpoints will result in a missing required field error for the given field.
| Service | Test Case | Sub-Test Case | Outcome | Trigger |
|---|---|---|---|---|
| POST/Create Transfer | Success | Bank Account | 201 - Created | N/A - A valid bank account transfer will bypass the proxy |
| POST/Create Transfer | Success | Push to Card | 201 - Created | N/A - A valid push to card transfer will bypass the proxy |
| POST/Create Transfer | Unauthorized | N/A | 401 - Unauthorized | Sender First Name: John, Sender Last Name: Doe |
| POST/Create Transfer | Validation Errors | Missing Required Field - Recipient ID for Bank Account | 400 - Bad Request | N/A - triggered when no recipientId is included is included in request |
| POST/Create Transfer | Validation Errors | Missing Required Field - Invalid Amount | 400 - Bad Request | N/A - triggered when no amount is included in request |
| POST/Create Transfer | Validation Errors | Missing Required Field - Quote History ID | 400 - Bad Request | N/A - triggered when no quoteHistoryId is included in request |
| POST/Create Transfer | Validation Errors | Min/Max Limit Validation on Corridor | 400 - Bad Request | Amount: 1000000000 |
| POST/Create Transfer | Validation Errors | Insufficient Funds in FBO Account | 400 - Bad Request | Sender First Name: Rose, Sender Last Name: Doe |
| POST/Create Transfer | Validation Errors | Invalid NONCE | 400 - Bad Request | NONCE Value: 11111111-1111-1111-1111-111111111111 |
| POST/Create Transfer | Validation Errors | Quote Change (within same session) | 400 - Bad Request | Sender First Name: James, Sender Last Name: Doe |
| POST/Create Transfer | Validation Errors | Sender ID Expired on Transfer (existing sender) | 400 - Bad Request | Sender First Name: Jeffrey, Sender Last Name: Doe |
| POST/Create Transfer | Validation Errors | Invalid Card during Push to Card | 400 - Bad Request | Sender First Name: Jay, Sender Last Name: Doe |
| POST/Create Transfer | Timeout | Timeout | 504 - Gateway Timeout | Sender First Name: Jennifer, Sender Last Name: Doe |
| POST/Create Transfer | Timeout | Timeout | No Response | Sender First Name: Jamie, Sender Last Name: Doe |
| POST/Create Sender | Success | Create Person Sender | 201 - Created | N/A - A valid sender will bypass the proxy |
| POST/Create Sender | Unauthorized | N/A | 401 - Unauthorized | Sender First Name: John, Sender Last Name: Doe |
| POST/Create Sender | Validation Errors | Missing Required Field - Address Component Missing | 400 - Bad Request | Do not include ADDRESS_LINE_1 |
| POST/Create Sender | Validation Errors | Missing Required Field - Phone Number | 400 - Bad Request | Do not include PHONE_NUMBER |
| POST/Create Sender | Validation Errors | Regex Validation - SSN has letters | 400 - Bad Request | ID Number: TSTIDNMBR, ID Type: SSN |
| POST/Create Sender | Validation Errors | Regex Validation - Name has unsupported special character | 400 - Bad Request | Sender First Name: Joh:n |
| POST/Create Sender | Validation Errors | CHAR Count Validation - Sender First Name with 1 CHAR | 400 - Bad Request | Sender First Name: X |
| POST/Create Sender | Validation Errors | DoB Validation - Sender younger than 18 | 400 - Bad Request | Date of Birth: 2025-01-01 |
| POST/Create Sender | Timeout | Timeout | 504 - Gateway Timeout | Sender First Name: Mark, Sender Last Name: Henry |
| POST/Create Sender | Timeout | Timeout | No Response | Sender First Name: Felix, Sender Last Name: Oblac |
| GET/Nonce | Success | N/A | 200 - OK | N/A |
| GET/Nonce | Validation Errors | N/A | 504 - Gateway Timeout | N/A |
| GET/Nonce | N/A | No Response | N/A | N/A |
